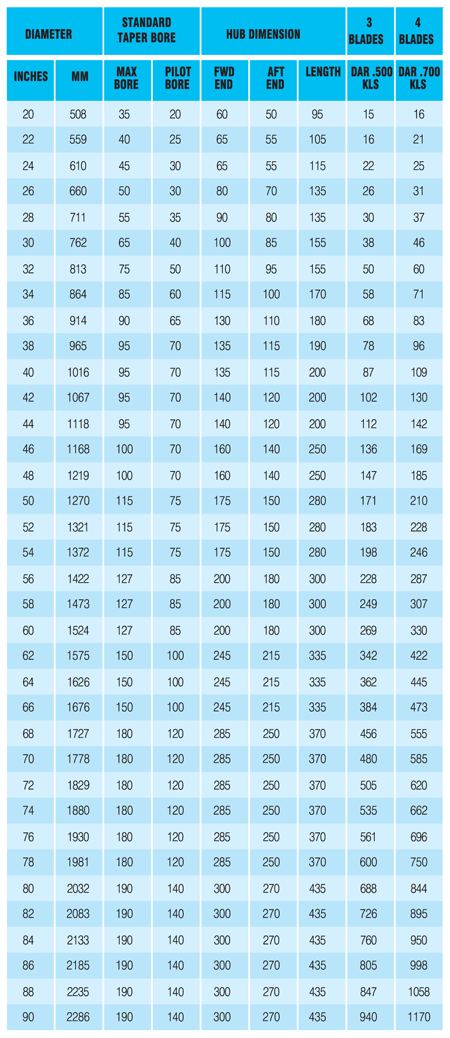

» HEAVY DUTY / WORKBOATS PROPELLERS

Designed for supply vessels and crew boats. Wide blade design incorporated with high camber provide utmost engine efficiency, thus increasing speed throughout the range.

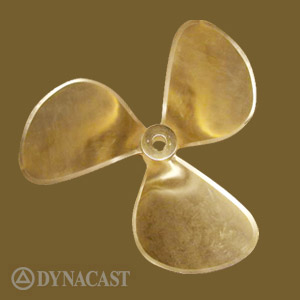

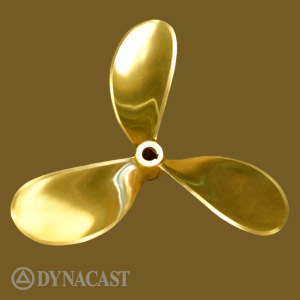

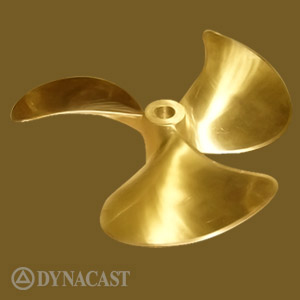

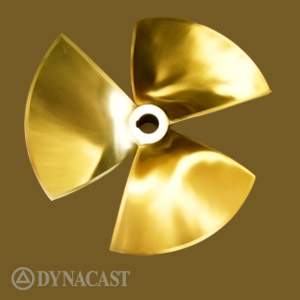

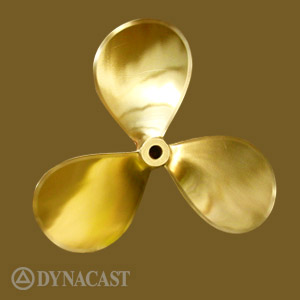

	3 BLADES Diameter : 8" OD - 120" OD D.A.R. : .500 - .850 P / D : .500 - 1.00 Rake : up to 10º » view specifications
	Back to Top «

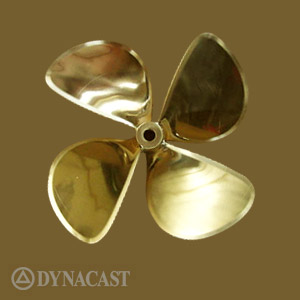

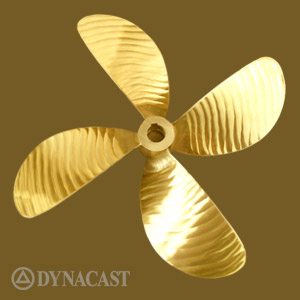

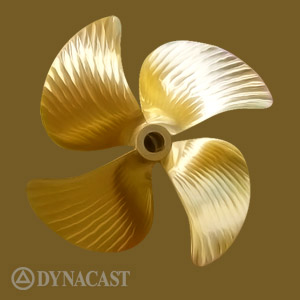

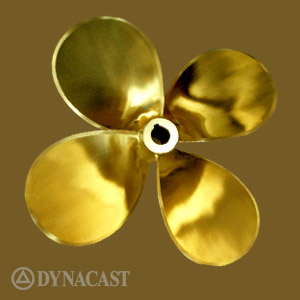

	4 BLADES Diameter : 8" OD - 120" OD D.A.R. : .600 - .900 P / D : .500 - 1.10 Rake : up to 10º » view specifications
	Back to Top «

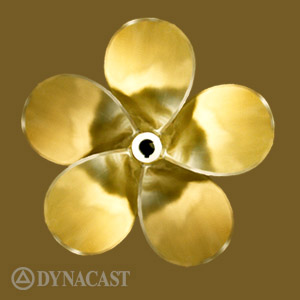

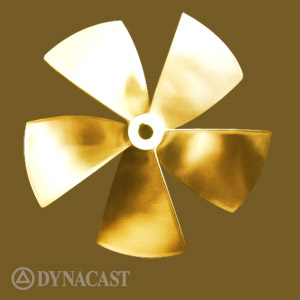

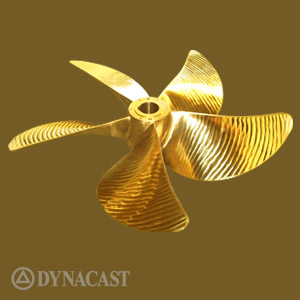

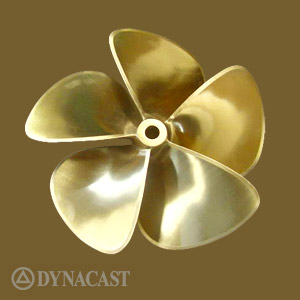

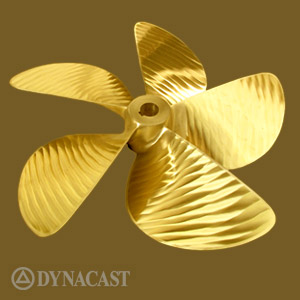

	5 BLADES Diameter : 24" OD - 120" OD D.A.R. : .600 - .900 P / D : .500 - 1.10 Rake : up to 10º » view specifications
	Back to Top «









. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .





. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

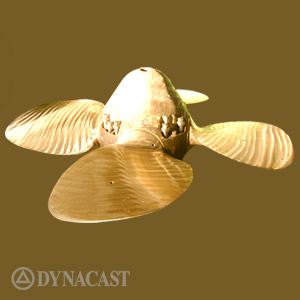

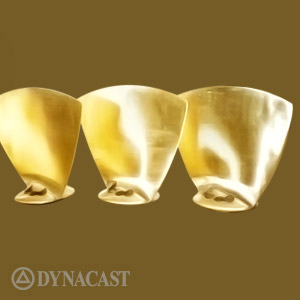

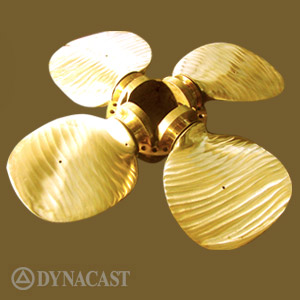

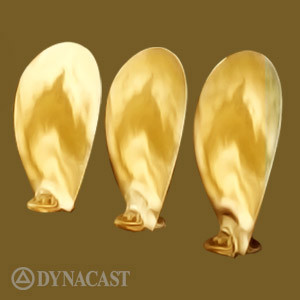

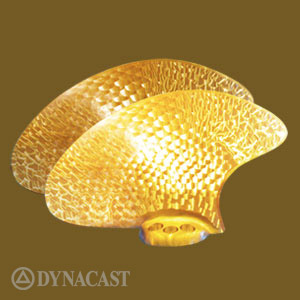

CPP BLADES

Dynamic Castings CPP Blades are reliable in performance bacause of the uniformly enduring quality that has been cast into them. Throughout, they are made to give you service.

In the manufacturing of CPP Blades, there are several distinct steps, each are under with supervision and conscientious study based on practical experience.

	CPP BLADES
	Back to Top «
	CPP BLADES
	Back to Top «
	CPP BLADES
	Back to Top «

RECONDITIONING OF because of the unusual qualities of controllable pitch propeller or variable propeller, replacement of new CPP are very expensive, so we offer reconditioning on Blade and Journal hub such as:

1. • Straightening mis alligned blades @ various radius
2. • Aligning leading and trailing edges, polishing and weight balance
3. • Re-facing CPP blades journal fit on journal hub
4. • Re-conditioning and modification of journal hub assembly, including machining, drilling, tapping and inserting sleeve (same material as mother metal) to fit CPP Blades to journal hub as per approved tolerance.

	CPP for FISHING VESSEL for TUNA
	Back to Top «
	CPP CONFORMS to ISO 484-11 BLADES
	Back to Top «

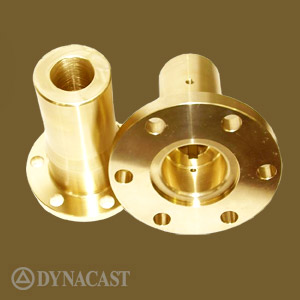

	COMPANION COUPLING
	Back to Top «



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

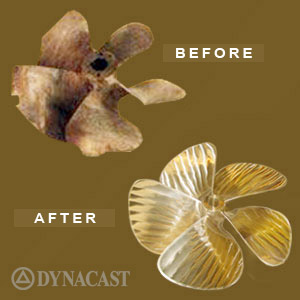

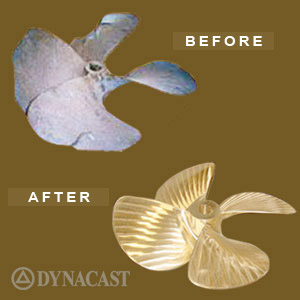

	BEFORE AND AFTER REPAIRS
	Back to Top «
	BEFORE AND AFTER REPAIRS
	Back to Top «





. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

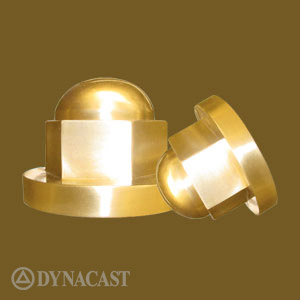

PROPELLER NUTS

	PROPELLER NUTS Material : Cast Manganese Bronze SAE 430-A Size : as per specification, machine, and threaded fit to your shafting. Specification: High strength and superior wear properties, Excellent Corrosion Resistance, Engineering Assistance Available.
	Back to Top «

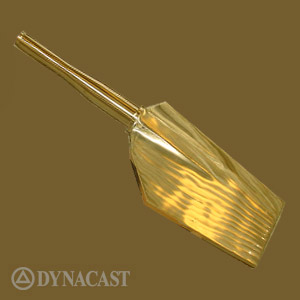

	RUDDER
	Back to Top «
	TURBINES
	Back to Top «

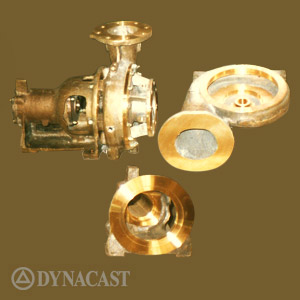

	PUMP ASSEMBLY
	Back to Top «



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

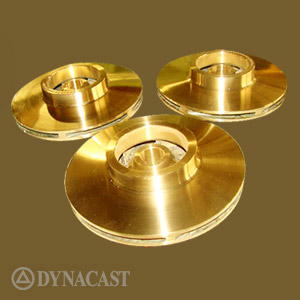

	PUMP IMPELLERS
	Back to Top «

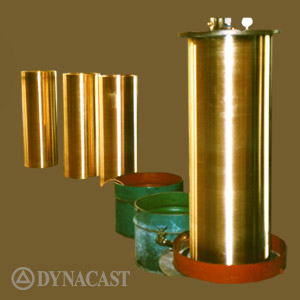

	SHAFT SLEEVES Material : Cast Hard Bronze SAE 63/JIS BCB (designed to match hardened steel) Size : as per specification Hydrotested @ 2kg as required by classification society • Engineering Assistance Available
	Back to Top «

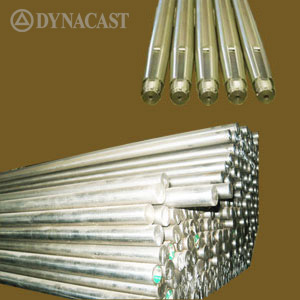

	STAINLESS STEEL SHAFTING
	Back to Top «



. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .



» SACRIFICIAL ANODES - ZINC / ALUMINUM ANODES

1. Types :
2. • Bolted
3. • Welded
4. • Wrap Around

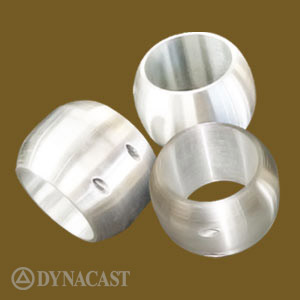

5. • Shaft Anodes / Special Size

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

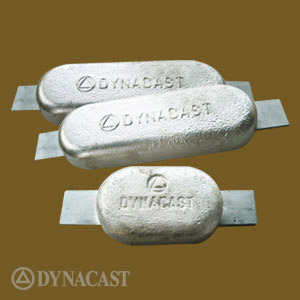

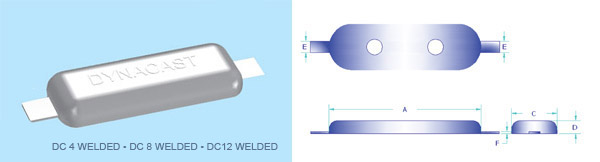

DYNACAST ZINC ANODES (WELDED type)

Dynacast Sacrificial Anodes are Manufactured in strict accordance with MIL - A - 1800 - E. With our extensive Inventory of moulds, we can make almost any shape and size as required.





Note: Dimension are in mm

TYPE	A	B	C	D	E	F	G	Average Weight
DC4 Welded	260	168	110	50	50	5		4.15 kgs.
DC8	410	300	110	50	50	5		8.10 kgs.
DC12	513	373	110	50	50	5		12.35 kgs.

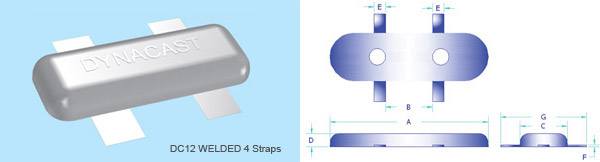

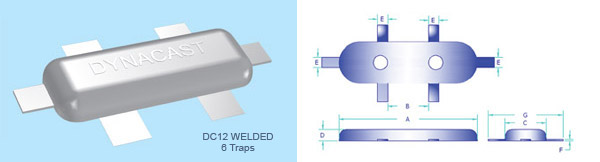

DC12 w/ 4 Strap	353	147	113	50	30	5	213	12.35 kgs.
DC 17.5	622	496	120	50	50	8	250	17.85 kgs.







ZINC MIL - A - 18001 - E (%)
Cadmium (Cd)	0.025 - 0.07		Iron (Fe)	0.005 max
Aluminum (Al)	0.1 - 0.5		Lead (Pb)	0.006 max
Copper (Cu)	0.005 max		Others (each)	0.10 max
Zinc (Zn)	Remainder
ELECTROCHEMICAL PROPERTIES
Efficiency	95%		Potential	-1.10V Cu/CoSo Ref.
Capacity	780 Ampere hours per kg.		Consumptions	11.2 kgs. per Ampere year

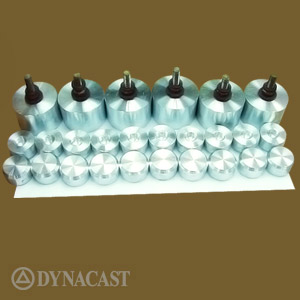

SPECIAL SIZE ANODES

ZINC ALLOY CHEMICAL COMPOSITION

Also Available: Special Sizes zinc anodes for Engine Blocks, Cylinder Heads, Sea Chest, Ballast Tanks and Heat Exchanger.

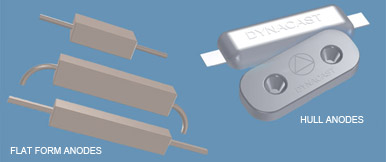

DYNACAST ALUMINUM ANODES

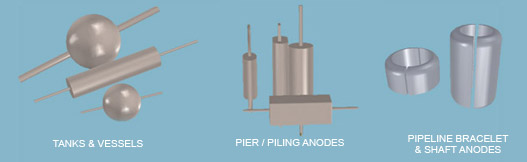

1. Aluminum Anodes for:
2. • Offshore and project anodes
3. • Harbor facility & sea port anodes
4. • Pipe line in seawater
5. • Oil tank anodes
6. • Hull anode bolt-on and weld on
7. • Ballast tank anodes
8. • Sea water exchange cooler

Chemical Composition (% by Weight)
Indium ( In)	0.015 - 0.025		Iron (Fe)	0.07 max
Titanium (Ti)	0.025		Silicon (Si)	0.10 max
Others (each)	0.003 max		Others (each)	0.003 max
Zinc (Zn)	4.75 - 5.25		Aluminum (Ai)	Remainder
ELECTROCHEMICAL PROPERTIES
Efficiency			90%
Potential			-1.10V Ag/Ag Cl ref.
Capacity			2700 Ampere hours per kg.
Consumption			3.27 kgs. per Ampere year

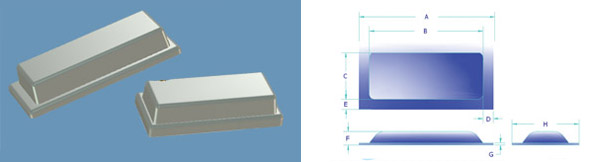

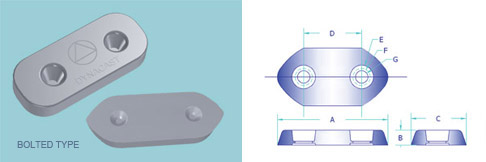

BOLTED Type



TYPE	A	B	C	D	E	F	G	Average Weight
DC 1.5 Bolted	190	28	68	78	38	31	19.5	1.53 kgs.
DC 2 Bolted	162	25	87	75	38	31	19.5	2.78 kgs.
DC 4 Bolted	245	40	100	105	44	29	19.1	4.10 kgs.
DC 8 Bolted	318	46	105	165	47.6	31.8	19.7	8.26 kgs.
DC 12 Bolted	480	60	80	230	50	30	22	12 kgs.

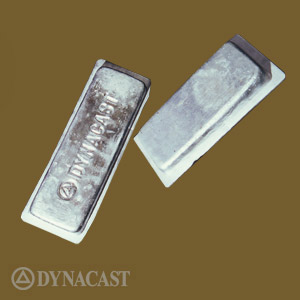

WELDED Type



TYPE	A	B	C	D	E	F	G	F	Average Weight
DC8 Wrap Around	305	279	126	13	13	38	06	152	8.0 kgs.
DC12 Wrap Around	406	381	127	12.5	12.5	38	06	152	12.0 kgs.



WRAP AROUND Type







	Back to Top «

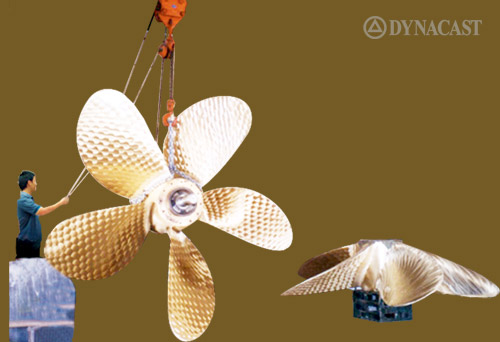

MARINE STRICT SUPERVISION QUALITY CONTROL
	Back to Top «

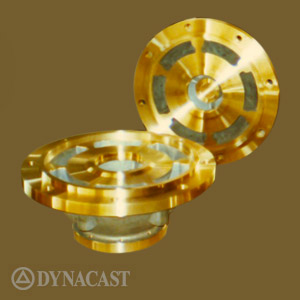

	DISCHARGE / SUCTION / INTERSTAGE
