© DYNAMIC CASTINGS - CEMENT INDUSTRY - BUSHINGS

PRODUCTS » Cement Industry

	Bronze Bushings Bronze Bushings		Kiln Bushings Kiln Thruster Bushings		Roller Journal Roller Journal Arms


	Journal Bearings Roller Journal Bearings

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

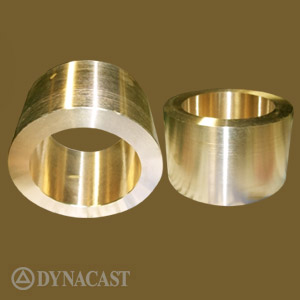

	BRONZE BUSHINGS Material : High Leaded TIN Bronze Alloy 3D SAE 67 Size : 408mm OD x 377mm ID x 218mm OAL Weight : 55 kls.
	Back to Top «

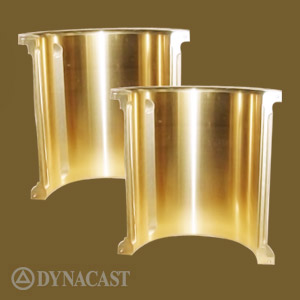

	KILN THRUSTER BUSHING Material : High Grade Phosphor Bronze SAE 65, CuSn10 Size : 421mm FOD x 25mm Flange Thickness x 393mm BOD x 342mm ID x 420mm L Weight : 101 kls./halve
	Back to Top «

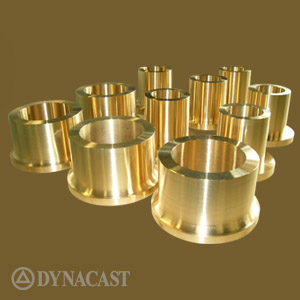

	BUSHING, ROLLER JOURNAL ARM Material : Hard Bronze SAE 62 Size : 184.15mm FOD x 19.05mm Flange Thickness x 127mm BOD x 95.25mm ID x 152.40mm OAL Weight : 9.50 kls
	Back to Top «

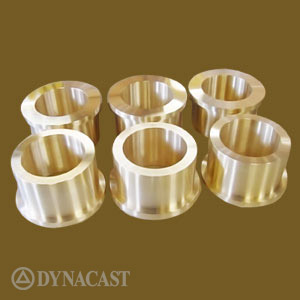

	BUSHING, ROLLER JOURNAL BEARING Material : Hard Bronze SAE 62 Size : 225mm FOD x 15mm Flange Thickness x 195mm BOD x 150mm ID x 125mm OAL Weight : 15 kls.

USEFUL RESOURCES

Bronze are unquestionably the most versitile class of bearing materials offering a broad range of properties from a wide range of alloy selection and composition.

• SAE 40
• SAE 430 - A
• SAE 62
• SAE 63
• SAE 64
• SAE 65
• SAE 67
• SAE 68

Three Fundamental Elements:

• Understanding the Service Environment

• Designing for proper Lubrication

• Selecting the Best Bearing Material for Job
