PRODUCTS » Sugar Industry














. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .











MILL ROLL BEARINGS

3

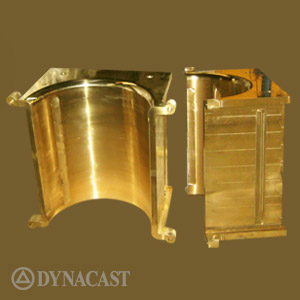

BEARING HALF TOP ROLLER

Material :

SAE 63 ASM Alloy 2C

Size :

585mm Flange x 540mm Body x 48.6mm ID x 657.22 OAL

Weight :

432.5 kls./halve Hydrotested @2kg



Back to Top «



3

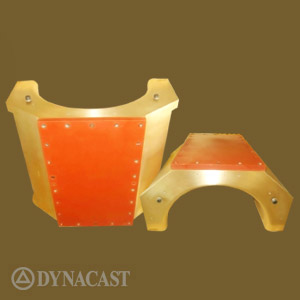

MILL BEARING

Material :1

SAE 62

Size :

730mm Length x 660mm Width x 350mm Height x 535.5mm ID

Weight :

480 kls./halve



Back to Top «



1

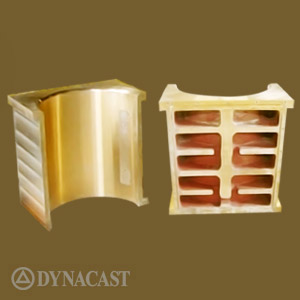

MILL JOURNAL BEARING for Walker Mill

Material :1

C.M. Lovested Tiger Bronze SAE 67

Size :

620mm Flange x 500mm Body x 510mm ID x 610mm OAL

Weight :

336 kls. Hydrotested @ 40PSI



Back to Top «



3

TOP ROLL BEARING LINER

Material :1

SAE 63 ASM Alloy 2C

Size :

25" Flange x 21" Body x 19"ID x 28"OAL

Weight :

147 kls. Hydrotested @ 40PSI



Back to Top «



1

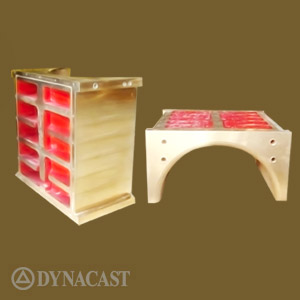

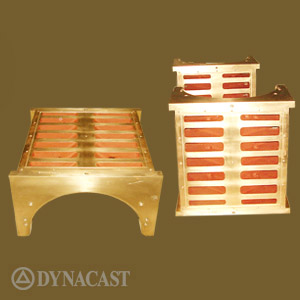

WATER COOLED TOP JOURNAL BEARING

Material :1

C.M. Lovested Tiger Bronze SAE 67

Size :

685mm Flange x 620mm Body x 460mm ID x 617mm OAL

Weight :

366 kls./halve Hydrotested @ 40PSI



Back to Top «



2

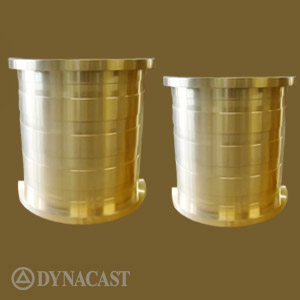

TOP ROLLER JOURNAL BEARING

Material :1

C.M. Lovested Tiger Bronze SAE 67

Size :

410mm Flange x 310mm ID x 345mm OAL

Weight :

95 kls./halve Hydrotested @ 2kg



Back to Top «



3

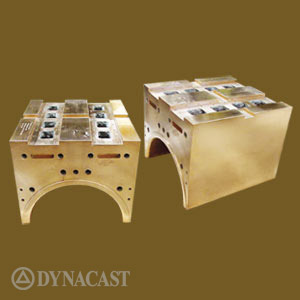

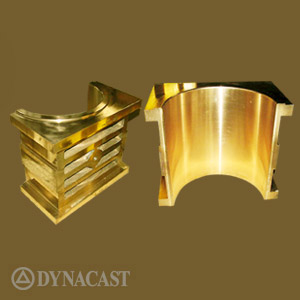

TOP ROLLER, UPPER HALF PINTLE SIDE

Material :1

C.M. Lovested Tiger Bronze SAE 67

Size :

650mm Length x 600mm Width x 250mm ID

Weight :

794 kls./halve Hydrotested @ 40PSI



Back to Top «



1

MILL JOURNAL BEARING for SUENCO

Material :1

C.M. Lovested Tiger Bronze SAE 67

Size :

635mm Flange x 583mm Body x 515mm ID X 660mm OAL

Weight :

352 kls.





Back to Top «





. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

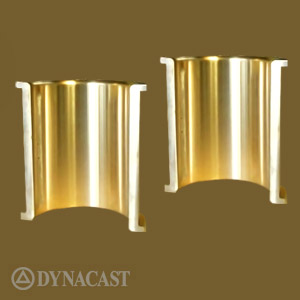

CHAIR LINERS

2

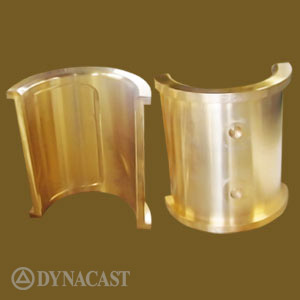

MILL TOP ROLL BEARING LINER

Material :2

SAE 63 / ASM ALLOY 2C

Size :

25 7/8"FOD x 22.535"BOD x 19.035"ID x 28" OAL

Weight :

260 kls.



Back to Top «



2

BOTTOM BEARING LINER OF MILL FEED AND GEAR SIDE

Material :2

ASM Alloy 2C

Size :

24 1/2"FOD x22"BOD x 19.035"ID x 28" OAL

Weight :

200 kls.



Back to Top «



3

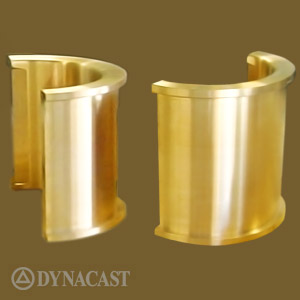

BOTTOM ROLL BEARING LINER

Material :2

SAE 67 Modi

Size :

580mm FOD x 520mm BOD x 455mm ID x 620mm OAL

Weight :

147 kls.



Back to Top «



2

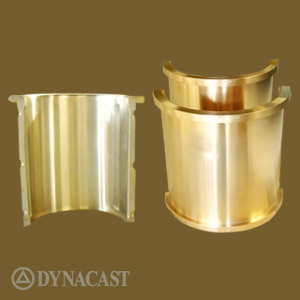

MILL ROLLER JOURNAL BEARING

Material :2

C.M. Lovested Tiger Bronze SAE 67

Size :

598mm FOD x 530mm BOD x 460mm ID x 617mm OAL

Weight :

159 kls./halve





Back to Top «





. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .



MILL BEARINGS

3

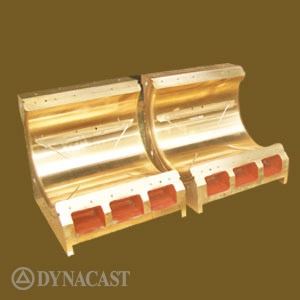

BEARING, BOTTOM ROLLER DISCHARGE PINTLE/PINION SIDE

Material :3

C.M. Lovested Tiger Bronze SAE 67

Size :

630mm Length x 600mm Width x 500mm ID

Weight :

651 kls/halve Hydrotested @ 40PSI





Back to Top «





. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .



PISTON LINERS

3

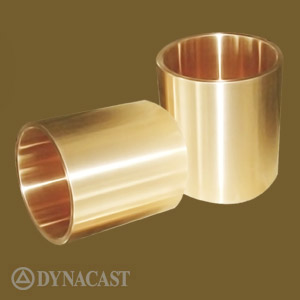

HYDRAULIC PISTON LINER for Farrel Mill

Material :4

C.M. Lovested Tiger Bronze SAE67/JSI LBC5

Size :

16 3/4"OD x 15"ID x 18 5/16"Length

Weight :

114.50 kls.



Back to Top «



2

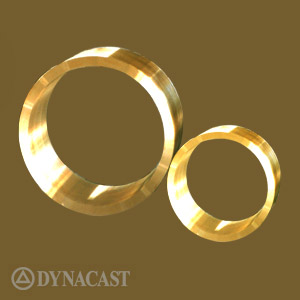

PISTON SEGMENT

Material :4

High Leaded TIN Bronze CDA 9430

Size :

300mm OD x 272mm ID x 330mm L

Weight :

46.50 kls.





Back to Top «





. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .



PUMP IMPELLERS

2

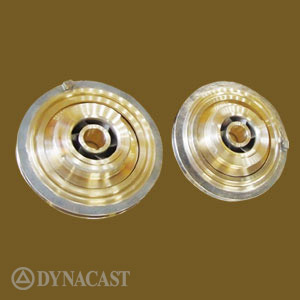

CENTRIFUGAL PUMP MULTI-STAGE CLOSE TYPE ASSEMBLY WITH DIFFUSER & WEARING RING for 4HMT fabrication, Dynamically Balanced @ 1800RPM

Material :5

SAE 62

Size :

24.25" OD x 1.8 face width

Weight :

20.5 kls./set



Back to Top «





. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .



CROFT LINERS

1

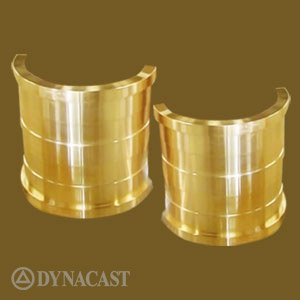

SPLIT BEARING LINER ASSEMBLY for Pilow Block Bearing Final Motion

Size :6

20 3/8"FOD x 19"BOD x 16.80"ID x 20"OAL

Weight :

110 kls/halve



Back to Top «



1

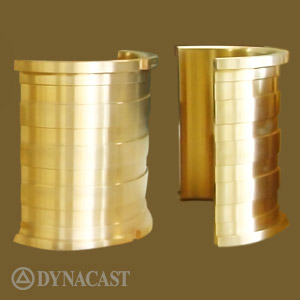

BOTTOM ROLL LINER for Walker Mill

Material :6

C.M. Lovested Tiger Bronze / SAE 67

Size :

25"FOD x 23"BOD x 21"ID x 25"OAL

Weight :

133 kls.



Back to Top «



1

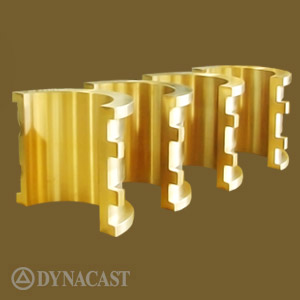

CROFT GEAR LINER

Material :6

SAE 67 Modi

Size :

19"FOD x 16 3/4" BOD 14"OD x 16" OAL

Weight :

90.50kls/halve



Back to Top «



3

SINGLE REDUCTION GEARBOX

Material :6

SAE 63/Alloy 2C

Size :

446mm FOD x 402mm BOD x 355mm ID x 428mm OAL

Weight :

88 kls.



Back to Top «



3

TOP ROLLER JOURNAL BEARING

Material :6

C.M. Lovested Tiger Bronze SAE 67

Size :

650mm FOD x 584mm BOD x 533.4mm ID x 660.4mm OAL

Weight :

145 kls./halve





Back to Top «





. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .



TRAVELLING GRATES

3

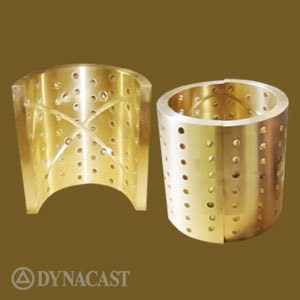

BIGELOW TRAVELLING GRATE (Split Type)

Material :7

Aluminum Bronze 9D, Copper Alloy C95500; ASTM B505, ASTM B271

Size :

5"OD x 4"ID x 6"L

Weight :

6.0 kls/set of 2 halves





Back to Top «













USEFUL RESOURCES

Bronze are unquestionably the most versitile class of bearing materials offering a broad range of properties from a wide range of alloy selection and composition.

  1. • SAE 40
  2. • SAE 430 - A
  3. • SAE 62
  4. • SAE 63
  5. • SAE 64
  6. • SAE 65
  7. • SAE 67
  8. • SAE 68

Three Fundamental Elements:

  1. • Understanding the Service Environment
  2. • Designing for proper Lubrication
  3. • Selecting the Best Bearing Material for Job
