MARINE DIESEL ENGINES

Weichai LandKing WP12C Series Marine Diesel Engine
LandKing WP12C Series Marine Diesel Engine that improved on the basis of the LandKing, is a environment-friendly energy-saving diesel engi...

  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Weichai Deutz 226B series marine diesel engine
226B series marine diesel engine is mainly used as the main engine or the auxiliary engine of the ship, its power range is35—135kW.

  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Weichai WD615 series marine diesel engine
Weichai WD615C series marine diesel engine with the power range from 110 to 220kW. It is the large power and environmental protected engin...

  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Weichai WD618 series Marine diesel engine
Weichai WD618 series diesel marine diesel engine with the power range from 180kW to 275kW.It has the advantages of large power storage, lo...

  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Weichai R6160 series marine diesel engine
R6160 series marine diesel engine with the power range from 164 to 330kW, is based on the conception of better performance, low consumpti...

Weichai X170ZC series marine diesel engine (containint 6170, 8170)
X170ZC series marine diesel engine weith the power range from 258 to 601kW, can widely be used in various shipping

Weichai CW200 sereis marine diesel engine
XCW200ZC series marine diesel engine is an optimum power source for passenger liner, fishing ship, ro-ro vessel and medium-small container...



Back to Top «

1



1

Weichai LandKing WP12C Series Marine Diesel Engine





» Model List
» Performance curves
» Main specifications

Weichai LandKing WP12C Series Marine Diesel Engine that improved on the basis of the LandKing, is a environment-friendly energy-saving diesel engine with a new design concept.

  WP12C series marine diesel engine, is the best supporting energy-saving power with the advantages of compact structure, optimum dynamic and economic performance, high reliability. It is the best power for freshwater transportation, fishery, ships of duty.

  Structural features

  WP12C series of marine diesel engine use the main frame structure of Landking Euro III Diesel Engine with high-pressure common rail, such as the body, the cylinder heads, crankshaft, connecting rod.

  WP12 high pressure common rail Euro III Diesel Engine which is jointly developed with Austrians AvL company, is a new generation of high-performance energy saving, environmental protection engine. Its

  Components are in finite element analysts and simulation operation, which makes substantial increase in reliability and service life.

  WP12C series marine diesel engine use PZ8500-line flange pump, Huoersaite supercharger can be set in the middle or behind the engine. In cold and heat exchangers are seted on the both sides of the diesel engine.

  Compated to Wd615, WD618 sereis marine diesel engine, Landking Series marine diesel engine are better reliability, power and economy of more obvious advantage.

  Performance advantages

  Low fuel consumption: the lowest fuel comsumption is 192g/kW.h, four—valve structure and reasonable intake system and combustion system has widened the economic operation range, and ensure the engine work with the best economy.

  Super power: high-reserve power, high-torque in low speed, acceleration good.

  Environmental protection, Low noise: framework of the body, low noise gearbox, special sump, which make the engine noise greatly reduced; emission targets advanced, smoke less than 1.0Rb when the engine in full-load.



Back to Top «



1



1

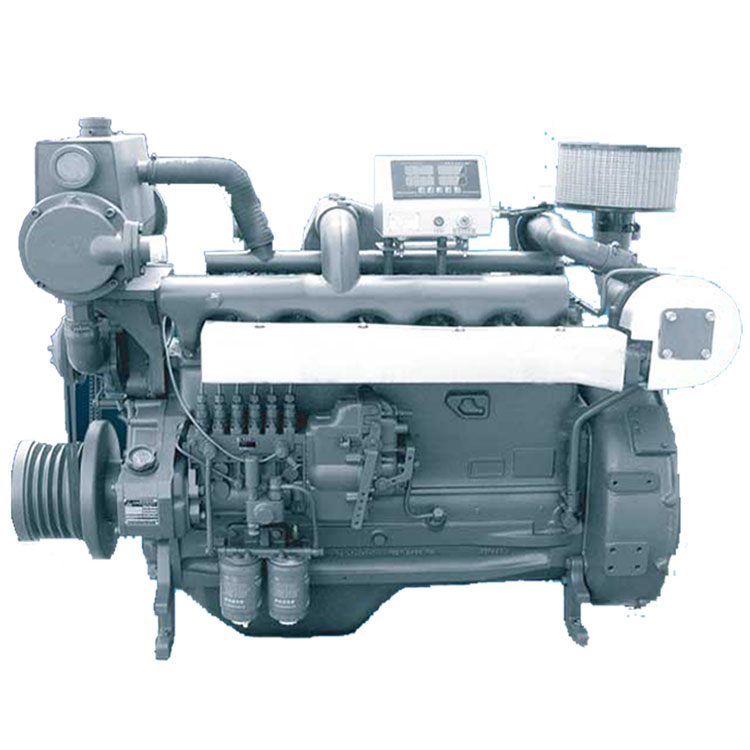

226B Series Marine Diesel Engine

2





» Model List
» Performance curves
» Overall dimensions
» Main specifications

226B series marine diesel engine is a modified model, which is developed, according to the relevant national standards and ship regulations, through making improvement on the combustion system, intake an exhaust system, cooling system, PTO system and engine monitoring system on the basis of assimilating foreign advanced technology. This model boasts wide power and speed range, small size and weight, impact structure, reliable operation, advanced economic and technical targets as well as convenient installation. It is mainly used as the main engine or the auxiliary engine of the ship.

  The main advantages of the engine

  Wide power range

  The power range of 226B marine engine is 35-150kW and its speed range is 1500-2500r/min.

  Low fuel consumption

  The minimum fuel consumption of 226B engine is 198g/kW.h. Its fuel consumption curve is very flat. It has good economy under common working condition.

  Reliable operation

  Backed by the internationally advanced technology, 226B marine engine is superior to the home-made engine in terms of components design and the selection of raw materials. The engine components will go through harsh inspection to ensure a high reliability. High performance engine monitoring meter can effectively guarantee the reliable operation of the engine.

  Convenient installation and maintenance

  226B marine engine adopts 6135C flywheel housing (widely used in China) or SAE1, SEAII (international standard) flywheel housing. Both the seawater-freshwater exchanger and the air cooler are mounted on the engine making the installation more convenient. To make easier for the maintenance, some alterations are made on the observation hole of the injection advance angle, the fuel filter as well as the position of the oil drain hole.

  Structure advantages

  Flywheel and Flywheel shell

  There are three kinds of flywheel shell for choice: SAEI, SAEII, 6135C.

  Crankshaft front end output

  Power output from the front end can meet the needs of driving the seawater pump, generator, steel wheel pump, fish net elevator and other appliance. And there are many kinds of belt wheel given for the choice.

  Seawater pump

  Impeller shaft of seawater pump is made of stainless steel, impeller and sealing ring are made of brass that is eroding-resistant and can prolong their life greatly. In addition to this, there are other kinds of seawater pump and double-suck seawater pumps that have more rate of flow and higher lift for the customer.

  Fresh water cooling system

  The type of cooling system is still closed and compelled cooling. According to the circumstance (tropics, semi-tropics, temperate-zone and etc), people can choose 55℃, 75℃ and 85℃, temperature controlled or no temperature controller and let the cooling water flow into the big circulation directly, which can keep the cooling water at about 80℃ after the circulation. Cooling pipes of the seawater-freshwater exchanger are made of brass pipe, and its cooling core is assembled by the advanced expanding-connection technology.

  Intake and exhaust system

  The intake and exhaust system has been improved more to adapt the special circumstance for ships to haul fishnets.

  Structure 1: the surface of the exhaust pipe and turbocharged is smeared with special warm-proof by special technology, which has lowered the temperature in the engine room. Steel cover is added to the exhaust pipe to prevent people from scalding by the protruding tighten blots.

  Structure2: specialized exhaust pipe is designed for marine diesel engine. The exhaust pipe is cooled by sea water through sea water and fresh water exchanger of inner-cooler. This structure can reduce the surface temperature of exhaust pipe to below 60℃.

  Apparatus monitoring system

  226B series marine diesel engine equips with the advanced ED211A5G or FV5K5F4 series deseil engine monitor. The monitors are all PC controlled. The car measure and display automatically the diesel engine speed cooling water temperature, oil temperature and speed cooling water temperature.



Back to Top «



1



1

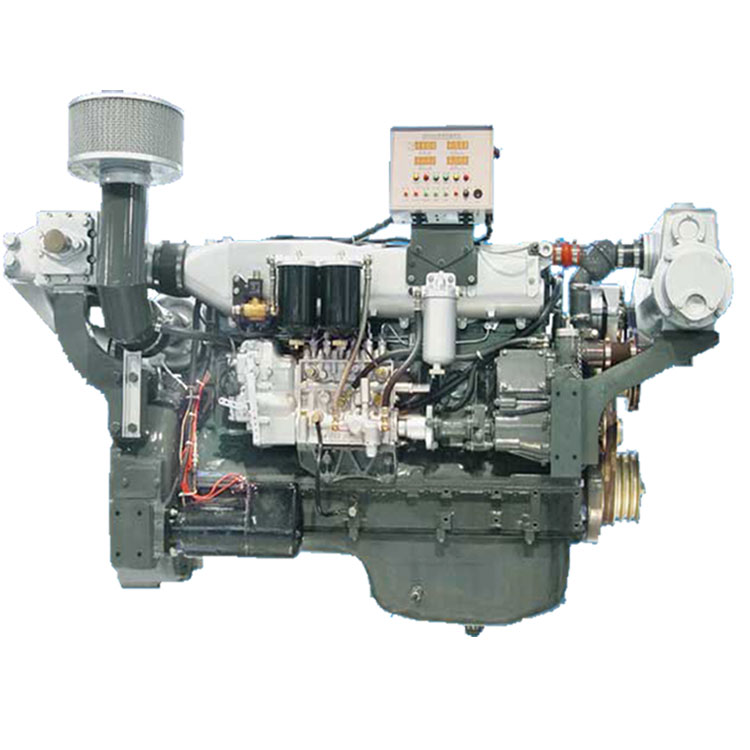

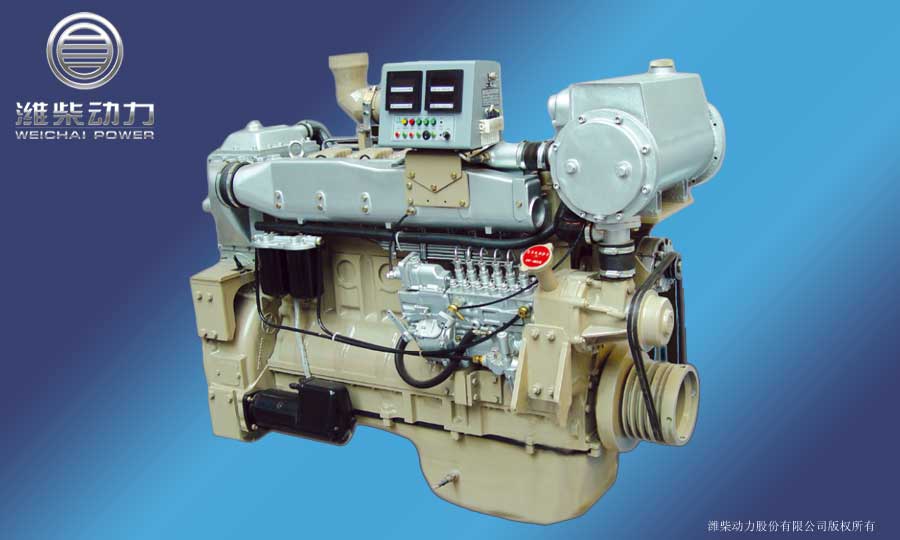

Weichai WD615 Series Marine Diesel Engine

2





» Model List

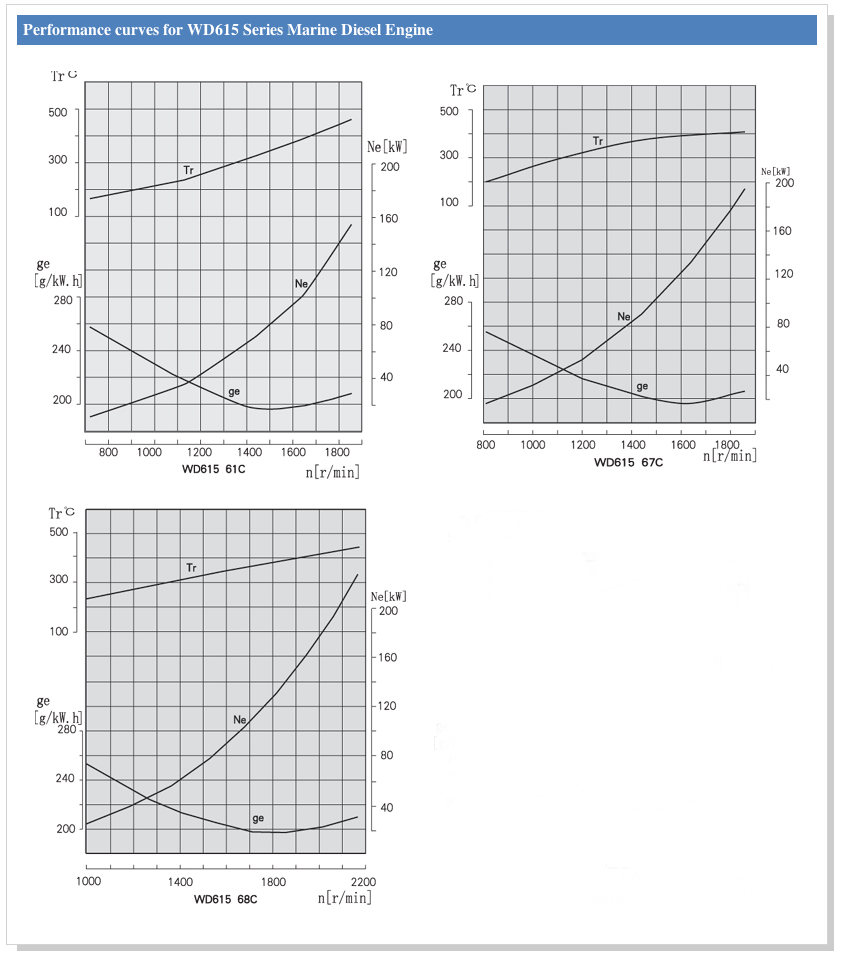

» Performance curves
» Overall dimensions
» Main specifications

Weichai WD615C series marine diesel engine has inherited the high-configure strategy of vehicle diesel engine. It is the large power and environmental protected engine with the advantages of compact structure, good-looking form, optimum dynamic and economic performance, high reliability low smoke, low noise and vibration, high speed and convenient to repair and maintain. It is the best power for ships of leisure, freshwater transportation, and fishery with the power range from 110kW to 220kW and the speed range from 1500rpm to 2100rpm, the engine can match with gearbox of 120C, 135, MB242, MB270A, 300 with ratio of 2:1—-7:1.

  Structure advantages of Marine diesel engine

  1. Special frame type main bearing structure makes the cylinder block has high strength and small vibration.

  2. Each cylinder has a separated cylinder head, makes it easy to maintain and has decreased the operation fee.

  3. Main spare parts and components are global purchased, and has realized the high-configure of the engine.

  4. All accessories are completed including air cooler and sea and fresh water heat exchanger, and make it easy to be installed.

  5. Dual-circulation water cooling method of both inside and outside is used, inside circulation is cooling the diesel engine by fresh water, and outside circulation is cooling the fresh water by sea-fresh water heater exchanger. The life of diesel engine has been prolonged.

  6. The diesel engine has perfect protection and control system. Intelligent controller has been used to supervise and control the diesel engine, and it can alarm and stop the engine whenever the speed, water temperature, oil temperature or pressure is over limit. Remote controller is also available.

  7. Water liner exhaust pipe can keep the low temperature of engine room.

  8. The size of flywheel and flywheel shell are the same of WD615C and WD618C series diesel engines, and the matching and repairing are convenient.

  9. There are pulley grooves and connecting flange seat in front of the crankshaft for customers to connect with power take off equipment.

  Fuel system:

  1. Fuel filter: With dual series connection paper element. It has the function to separate the fuel and water, and has increased the filtering effect.

  2. Multi small hole injector has increased the atomization quality.

  Intake and exhaust system:

  1. The surface of external pipe is coated by heat-proof material, and has assembled with heat proof shell to reduce temperature.

  2. Sea water is used to reduce temperature of integral water liner exhaust pipe, and the temperature of engine room has been reduced.

  Lubricating system:

  The oil cooler has improved into wing type element, and has increased cooling effect.

  Electrical controlling system:

  Running parameters are measuring and indicating automatically. It will alarm and stop the engine when parameters are over limit.

  Performance Advantages of Marine Diesel Engine

  Low fuel consumption: The lowest fuel consumption is 198g/kW.h. Reasonable intake system and fuel supply system have widened the economic operation range and ensure the engine work within the best fuel consumption range.

  Super power: Power storage can reach to output of 275kW. Speeding up quickly.

  Low noise, low emission and low smoke: Noise is up to 108dB(A), emission can fit to Euro II standard, and smoke up to 1.2Rb.



Back to Top «



1



1

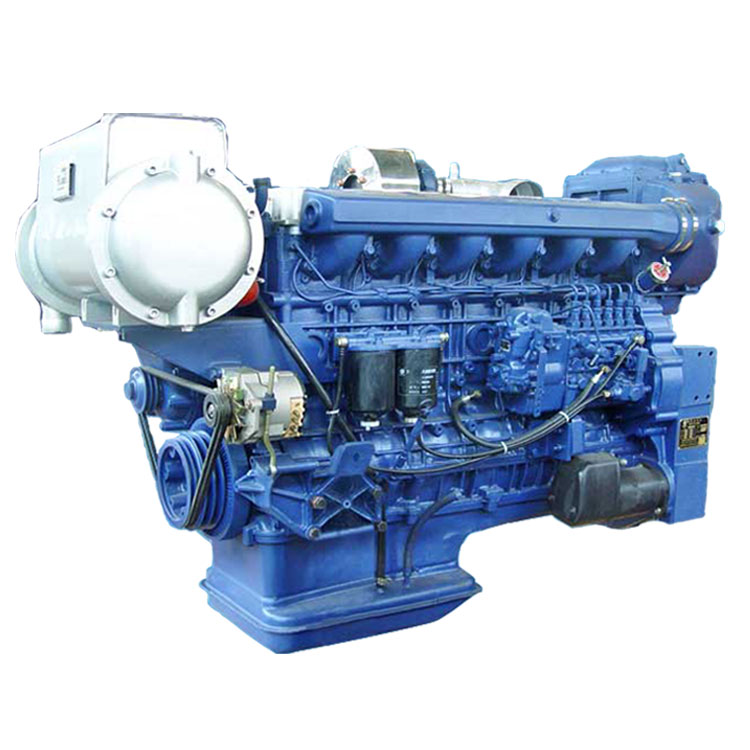

Weichai WD618 series Marine diesel engine

2





» Model List

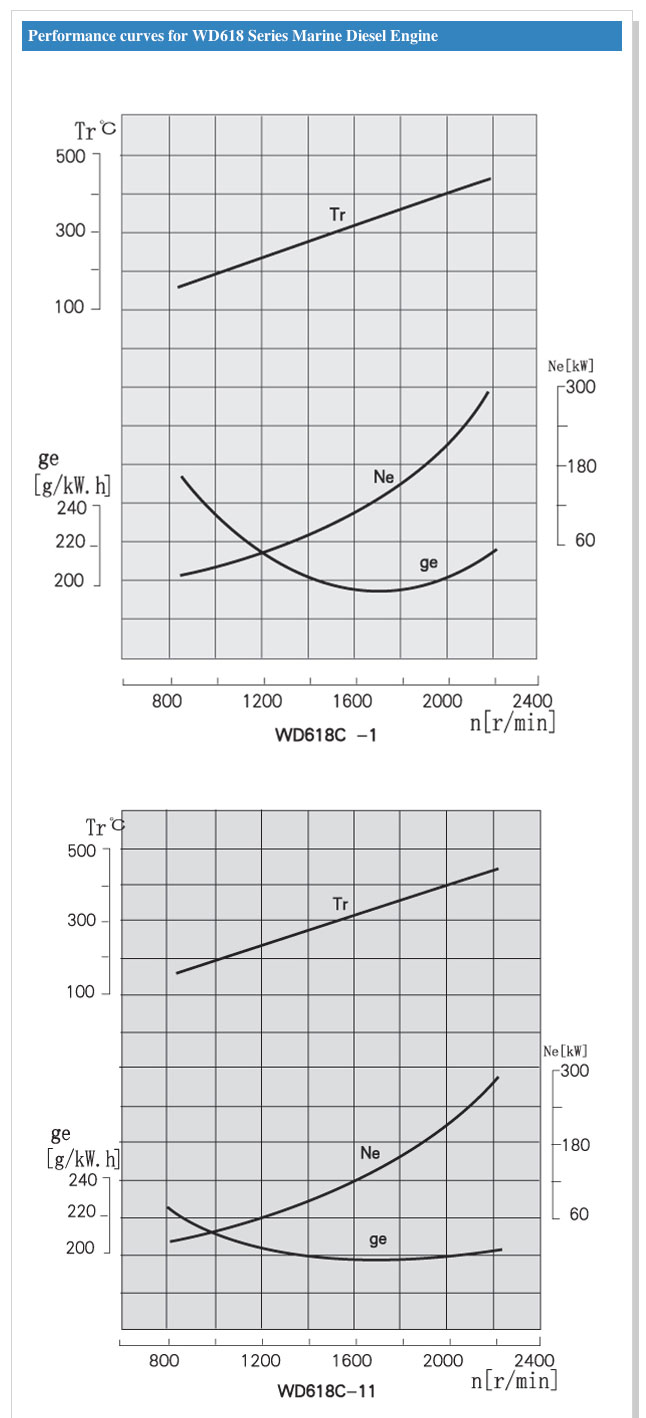

» Performance curves
» Overall dimensions
» Main specifications

Weichai WD618 series diesel marine diesel engine is developed from WD615 series diesel engine by enlarging the stroke. According to the request of marine engine and the national standard, we have developed WD618C series marine diesel engine. Its main spare parts and components are global purchased. It has the advantages of large power storage, low fuel consumption, low emission, high reliability, easy to operate and convenient to maintain. It is suitable for various ships with the power range from 180kW to 275kW, and speed range from 1500rpm to 2150rpm. The engine can match with gearbox of MB270A, 300 and D300 with ratio of 2:1 to 7:1.

  Structure advantages of Marine diesel engine

  1. Special frame type main bearing structure makes the cylinder block has high strength and small vibration.

  2. Each cylinder has a separated cylinder head, makes it easy to maintain and has decreased the operation fee.

  3. Main spare parts and components are global purchased, and has realized the high-configure of the engine.

  4. All accessories are completed including air cooler and sea and fresh water heat exchanger, and make it easy to be installed.

  5. Dual-circulation water cooling method of both inside and outside is used, inside circulation is cooling the diesel engine by fresh water, and outside circulation is cooling the fresh water by sea-fresh water heater exchanger. The life of diesel engine has been prolonged.

  6. The diesel engine has perfect protection and control system. Intelligent controller has been used to supervise and control the diesel engine, and it can alarm and stop the engine whenever the speed, water temperature, oil temperature or pressure is over limit. Remote controller is also available.

  7. Water liner exhaust pipe can keep the low temperature of engine room.

  8. The size of flywheel and flywheel shell are the same of WD615C and WD618C series diesel engines, and the matching and repairing are convenient.

  9. There are pulley grooves and connecting flange seat in front of the crankshaft for customers to connect with power take off equipment.

  Fuel system:

  1. Fuel filter: With dual series connection paper element. It has the function to separate the fuel and water, and has increased the filtering effect.

  2. Multi small hole injector has increased the atomization quality.

  Intake and exhaust system:

  1. The surface of external pipe is coated by heat-proof material, and has assembled with heat proof shell to reduce temperature.

  2. Sea water is used to reduce temperature of integral water liner exhaust pipe, and the temperature of engine room has been reduced.

  Lubricating system:

  The oil cooler has improved into wing type element, and has increased cooling effect.

  Electrical controlling system:

  Running parameters are measuring and indicating automatically. It will alarm and stop the engine when parameters are over limit.

  Performance Advantages of Marine Diesel Engine

  Low fuel consumption: The lowest fuel consumption is 198g/kW.h. Reasonable intake system and fuel supply system have widened the economic operation range and ensure the engine work within the best fuel consumption range.

  Super power: Power storage can reach to output of 275kW. Speeding up quickly.

  Low noise, low emission and low smoke: Noise is up to 108dB(A), emission can fit to Euro II standard, and smoke up to 1.2Rb.



Back to Top «



1



1

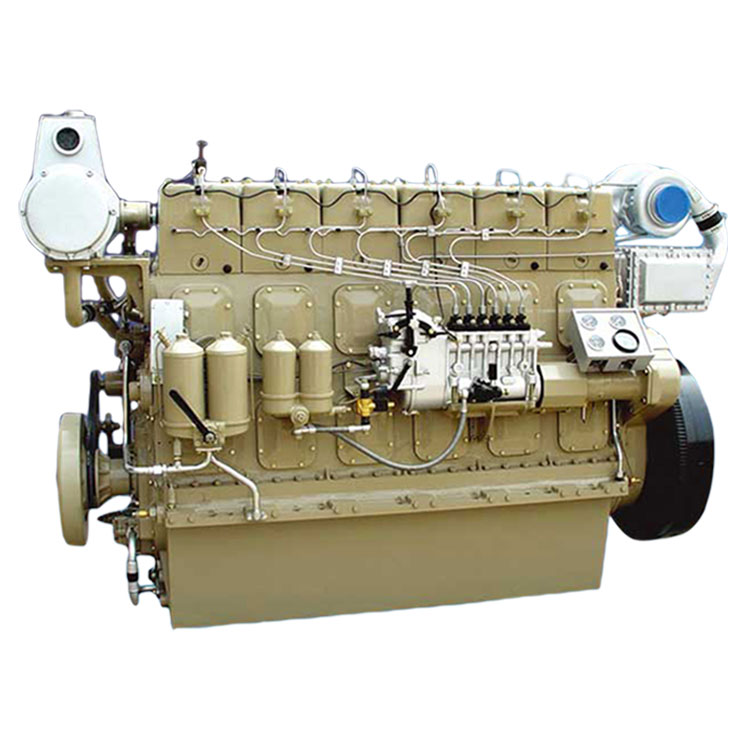

Weichai R6160 Series Marine DieselEngine

2





» Model List

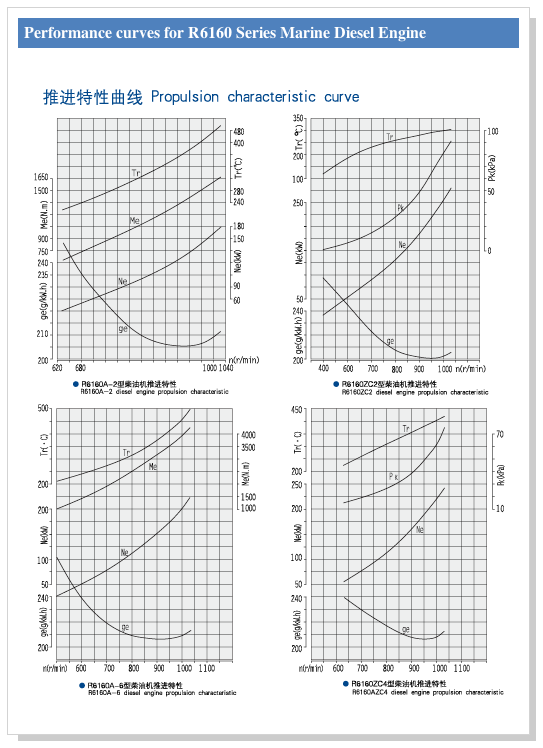

» Performance curves
» Overall dimensions
» Main specifications

Weichai R6160 series marine diesel engine is as new generation of 6160 series which is developed by WEICHAI to meet the requirement of market. This product integrates the internationally-advanced engine design conception, boasting wide power range, low fuel consumption and excellent emission targets.

  The design of the R6160 is based on the conception of better performance, low consumption, and convenient operation. The main alteration includes:

  Optimizing and improving the fuel system, intake and exhaust system, cooling system, lubrication system and starting system on the basis of original 6160 series;

  Adopting such advanced device as wet oil pan, electrical pre-supply fuel pump, electric starting motor and sea-fresh water heat exchanger;

  While inheriting strongpoint of the original 6160, the performance is improved and the fuel consumption is more lower (no more than 205g/kW.h);

  The operation is simplified: There is no need to pump oil manually while starting the engine.

  This 6160 series diesel engine, designed out of brand new conception, has reached internationally advanced position.

  The speed of R6160 series marine diesel engine is 1000r/min with a power range of 164kW(223hp) ~ 330kW(450hp).

  The marine engine is divided into left engine and right engine, making it convenient to operate in the same engine room. While facing the flywheel, the flywheel of the right engine rotates counterclockwise and the left engine rotates clockwise. The right engine is generally used when single engine is applied.

  Structure Advantages

  Thickened crankshaft

  The material of the crankshaft is high strength spherulitic graphic iron which has gone through unitizing treatment. The diameter of the main axle increases from Φ125mm to Φ130mm. The strength, rigidity as well as the wear resistance are all got enhanced, making the operation more reliable and service life much longer.

  Wet oil pan

  The adopting of the wet oil pan makes it unnecessary to add additional oil tank. Therefore, the installation, maintenance and the repair become more convenient.

  P injection pump

  The adopting of P injection pump brings along high reliability and good economy.

  Electric motor

  The remote starting can be realized with the help of the electric motor.

  Water jacket exhaust pipe

  The engine room can be kept at a low temperature by the means of water jacket exhaust pipe.

  Electric pre-supply fuel pump

  The automatic fuel pre-supply can be realized with the adopting of the electric pre-supply fuel pump.

  Starting control box

  The instrument monitoring protection system can display the speed of the engine. When the controlled parameter overruns the limit, it will alarm or stop the engine automatically. The control protection device can be mounted in the engine room or the cab according to the requirement of the customers.

  R6160 Marine diesel engine set

  We can supply R6160 series engine set fitted with 300 and J300 gearbox with the ratio of 2:1, 2.5:1, 3:1, 3.5:1 and 4:1.

  Performance Advantages

  Wide power range. The power of the R6160 series diesel engine ranges from 164kW to 330kW.

  Low fuel consumption. The fuel consumption of the R6160 sereis is no more than 205g/kW.h. the fuel consumption curve is low and the emission targets are particularly advanced. Under rated working condition, the value of smoke intensity is about 1 dB(A). Emission meets the EIAPP standard.

  Convenient operation and maintenance. Engine seating structure makes it much easier for repairing, thus decrease the amount of work.



Back to Top «



1



1

Weichai X170ZC series marine diesel engine (containint 6170, 8170)
X170ZC Series Marine Diesel Engine

2





» Model List

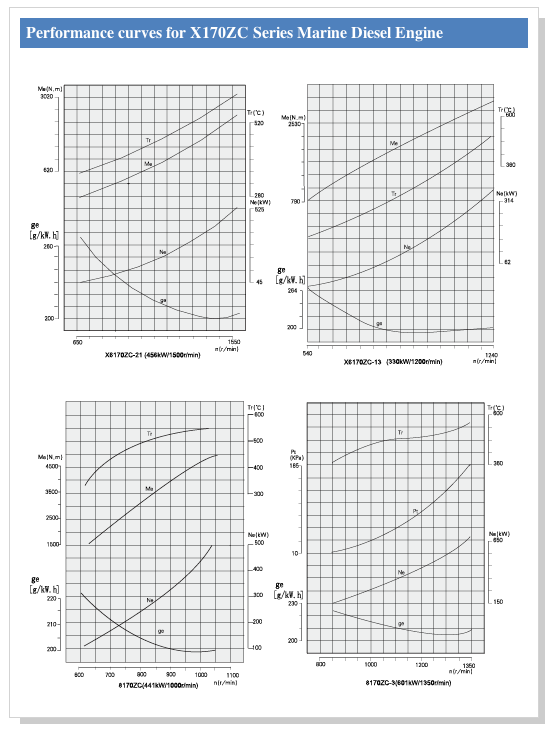

» Performance curves
» Overall dimensions
» Main specifications

Weichai X6170ZC series and 8170ZC series marine diesel engines are 6-cylinder and 8-cylinder diesel engines that improved on the basis of the original 170Z series diesel engine. By selecting more advanced turbocharger, high-pressure injection pump, injector, intake pipe and combustion chamber, the engines possess advantages of wide power range, low fuel consumption, low emission and rapid starting. Meanwhile, the cylinder block, cylinder liner, exhaust pipe and oil sump are all been improved, and the engines are more reliable, more advanced, with operation and maintenance more convenient. The power range is from 258kW to 601kW, rotation speed range is from 1000rpm to 1500rpm. The engines can widely be used in various shipping.

  Structure Advantages of Marine Diesel Engine

  1. Gantry structure with the reasonably collocated reinforcing steel bars makes the engine a compact structure with high intensity, high rigidity and low vibration.

  2. One cover per cylinder, dual intake pipes and four valves per cylinder can supply enough air intake and optimal intake whirlpool. One cover per cylinder makes it easy for maintenance work.

  3. The crankshaft is made of cast iron with high intensity and has been nitrified. It is collocated with 12 weight counterbalances itself which has greatly lessened the load of the main bearing.

  4. The connecting rod is forged by alloy steel which makes it much more reliable.

  5. The wet cylinder sleeve is cast by alloy of chrome, molybdenum, copper and nickel. Piston is cooled by injection oil. So the cylinder has little abrasion and can supply longevity service.

  6. Both P9 high pressure oil pump produced with introduced technology and the imported low inertia injector has super performance and can work with high reliability.

  7. Electric motor and air motor can both be supplied according to the end of the customers. Engines equipped with both starting device can also be supplied.

  Fuel system

  1. P9 high pressure oil pump: Tthe P9 high pressure is produced with the introduced technology. It possesses the high reliability and good performance.

  2. Improved low inertia injector: High reliability, steady performance and good atomization quality.

  3. Electric-magnetism value: It is used for monitoring parameters, and will automatically shut down at emergency.

  Cooling system

  1. Heat exchanger: Improving the cooling condition of diesel engine.

  2. Inter-cooler: Lower the intake temperature, and improve the engine performance.

  3. Water sleeve exhaust pipe: Lower the temperature in the cabin.

  4. Heat seclusion cover: Dry exhaust pipe and the heat seclusion cover with porcelain composite under layer. It can lower temperature inside the cabin and enhance the safety.

  Performance Advantages of Marine Diesel Engine

  Broad output range: Its output ranges from 258—601kW. It has a large power storage, high ship speed and quick speed-up ability.

  Low fuel consumption: the lowest fuel consumption is 197g/kW.h. The engine possesses an even fuel consumption performance curve, and has good economic capability under normal work condition.

  Low oil consumption: The oil consumption is up to 1.0g/kW.h. Under normal work condition the oil should be replaced every 1500h.

  Low smoke density and low noise: At standard work condition the smoke density is lower than 1—1.5Rb, and the average noise is lower than 116dB(A).



Back to Top «



1



1

Weichai CW200 Sereis Marine Diesel Engine

2

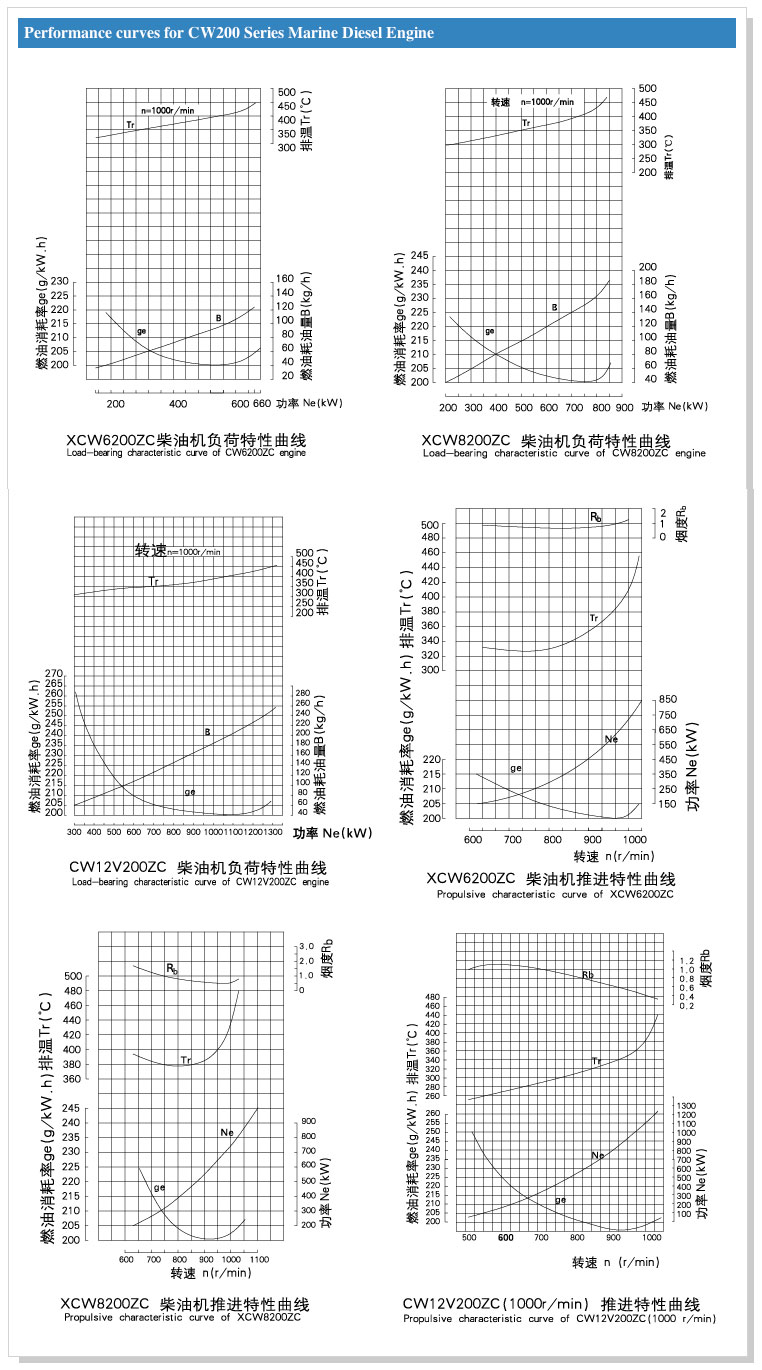

» Performance curves
» Overall dimensions
» Main specifications

Weichai CW200ZC/XCW200ZC series marine diesel engine is developed and manufactured based on researching techniques of medium speed engine both at home and abroad. It is characterized by rational construction, advanced performance index, reliable running operation and easy maintenance, etc. Its emission meets the requirements of MARPOL 73/78 of IMO (International Marine Origination).

  The series of engines has passed through the type approval test of China Classification Society and Register of Fishing Vessel of PRC, got ISO9001:2000 system certificate. It is an optimum power source for passenger liner, fishing ship, ro-ro vessel and medium-small containership, and also used for generating set for ship.

  Structure Advantages of Marine Diesel Engine

  Cylinder system

  Case-type cylinder block has the feature of smaller distortion and higher strength. The Rectangle build-in intake pipe has more reliability.

  Crankshaft

  The forging crankshaft is with structure of continuous fiber. Its rigidity of fatigue, bending and torsion resist is better than casting crankshaft. The structure of crankshaft has nitriding treated and it is more wearable and the reliability is thus increased.

  Cylinder Head

  Cylinder head and rock arm are a whole integer. Simple structure makes maintenance convenient.

  Cylinder Liner

  Cylinder liner is made by proof-erode and wearable material, with less distortion and low wearing, and the lifetime can be over sixty thousand hours. Forced cooling makes excellent lubricating condition, and prevents erode in low temperature.

  Piston

  Cross section of the piston is ellipse when cool, the vertical section is drum and is round when hot. This type of piston has less space with cylinder liner, and can reduce mechanical wear and tear. The mechanical efficiency of the engine has been increased and the fuel consumption has been reduced.

  Connecting Rod

  It is forced by high grade. The bearing of big end is cut horizontal and fastened by four bolts. The carrying capacity of bearing big end has been increased a lot.

  Performance Advantages of Maine Diesel Engine

  High reliability

  Crankshaft and connecting rod is forged by high-grade steel and the transmission gears of camshaft are made by alloy steel. Broken has been avoided completely. The cylinder liner is supported by three points with good rigidity and heated evenly, and reduced wearing. It is shown in 800 hours continuous testing that the overhaul time is over thirty thousand hours.

  Easy maintenance

  1. upper camshaft without push rod has decreased failures

  2. Sleeve spring are using in shock absorber, and no maintenance is needed during the engine is running.

  Low fuel consumption

  The lowest fuel consumption at the condition of 80%~90% nominal output is 195—200g/kW.h, and it is the long-term running point of ships. The oil consumption 1.0g/kW.h, and the characteristic curve is flat. It is very economic at normal conditions.

  Two-stage inter cooling

  Two-stage inter cooling is used to reduce intake temperature, and the intake volume is thus increased and makes the combustion more completely. The emission reaches to IMO standard and is qualified by CCS. As the intake temperature has been decreased the heat loading has been decreased and the reliability has been increased.

  Low emission

  Pulse turbo charging and two-stage intake & deep inter cooling are using in the engine, and the smoke is light-colored during the running of the engine. The emission is lower than Euro II standard and the exhaust smoke is 0.55RB compare with the standard of up to 2.5RB.

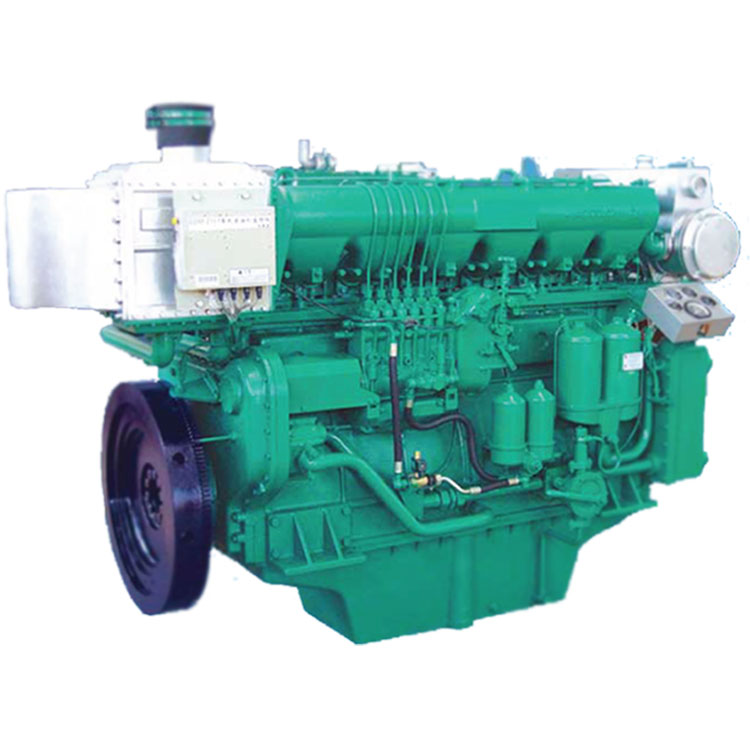

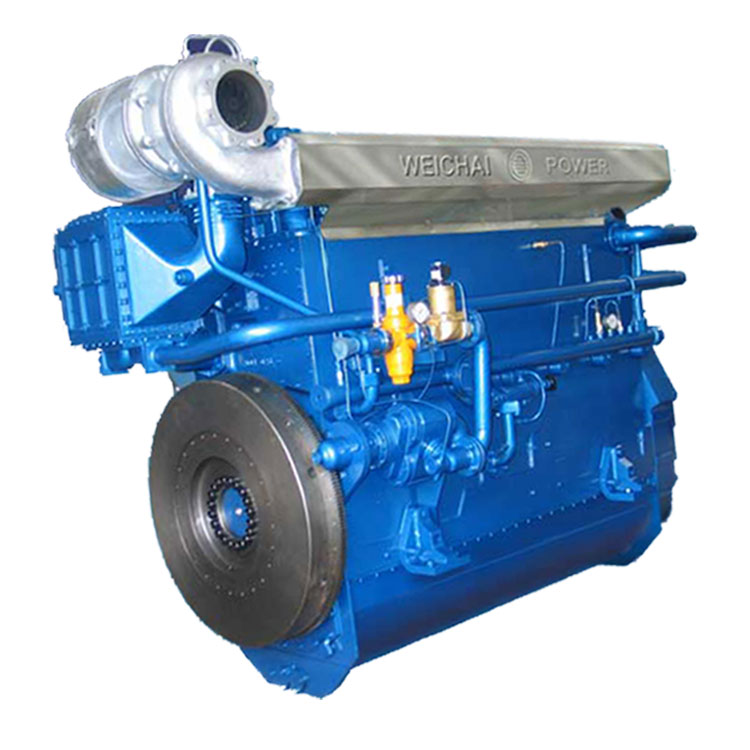

  CW200ZC/XCW200ZC Series Marine Diesel Set

  When CW200ZC series engine is used as marine main engine, it is equipped with coupling and astern-ahead clutch gear-case according to the rotation direction and speed of propeller of developing requirement. It is often equipped with GWC, J900,J1200A series gear-case at present, and makes feature of coaxing of input shaft and output shaft, with reduction ratio of 2—5.5. It also could be fitted with other type of gear-case if the user requires.

  Besides the manual control beside engine, it also supplies three remote control methods for user to choose: soft shaft, electrical control and pneumatic control.

  Hoisting requirement

  When engine set with package is hoisted, tight wire should be hitched at the protecting iron on the package. The engine set will always be kept steadily.

  There are two holes specially made for hoisting on both ends of the base, from which steel tube or tight wire can be threaded through for hoisting. Necessary protection measure should be taken to keep the engine set from damage. The whole hoisting process should keep steady and slowly. Side hoisting, pulling and tilting hoisting are all strictly forbidden.

  Installation requirement

  1. Requirement for seat: The surface of seat to install engine set should be rather flat.

  2. The marine engine set should be fastened with bolts on the base which is strong and horizontal. It is forbidden to weld the seat of engine set to the support in the engine room of ship.

  3. The inner diameter of engine exhaust pipe is over 350mm, and the siphon of exhaust pipe is over 90℃. Siphons should not exceed 3. the exhaust pipes should have supports to protect silencer and turbocharger from stress.

  4. The connecting between engine and seawater pipes should use tubes instead of rigid connection.



Back to Top «
